Animated BBN abundance evolution¶

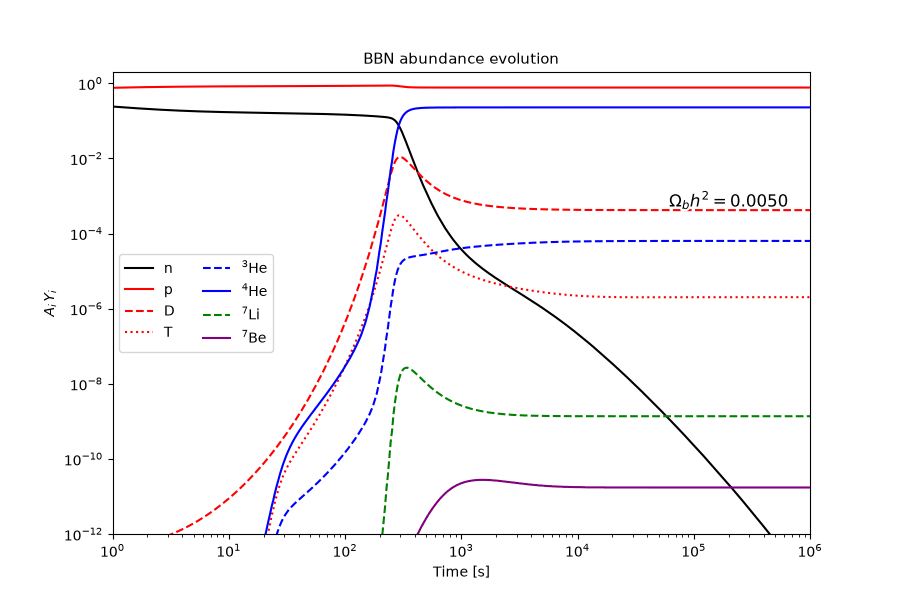

Creates two animated GIFs of the small-network abundance evolution \(A_i Y_i(t)\):

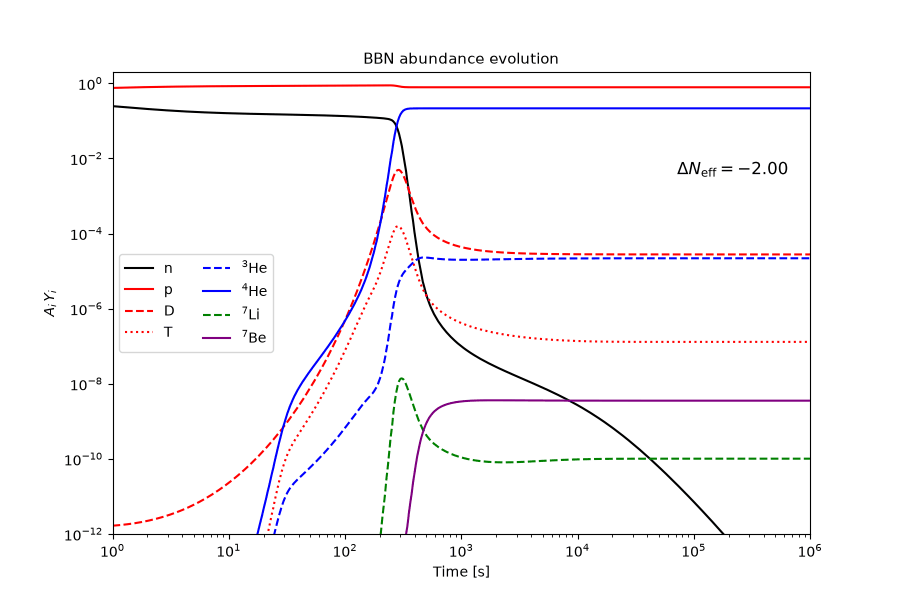

anim_deltaNeff.gif— sweeps \(\Delta N_{\rm eff}\) from \(-1\) to \(+1\), keeping \(\Omega_b h^2\) at its standard value.anim_omegabh2.gif— sweeps \(\Omega_b h^2\) from \(0.005\) to \(0.05\), keeping \(\Delta N_{\rm eff} = 0\).
All runs use network='small' (8 nuclides, 12 reactions). The data are precomputed
before the animation loop so that GIF rendering is fast.
import importlib.util, subprocess, sys
# In Colab (or any environment without a local primat checkout), pip-install
# the released package; local dev runs already have it importable (editable
# install / repo on sys.path via the cell below), so this is a no-op there.
if importlib.util.find_spec("primat") is None:
subprocess.run([sys.executable, "-m", "pip", "install", "-q", "primat"], check=True)
import sys, os
sys.path.insert(0, os.path.abspath('..'))
import numpy as np
import matplotlib.pyplot as plt
import matplotlib.patheffects as pe
from matplotlib.animation import FuncAnimation, PillowWriter
from primat.backend import run_bbn
from primat.evolution import Y_interpolator
from primat.config import PRIMATConfig
# Uses primat.backend.run_bbn() only (works on either backend); per-frame
# Y(t) interpolators come from primat.evolution.Y_interpolator on each run's
# EvolutionResult (output_time_evolution=True), the same backend-agnostic
# building block primat.plotting.abundance_evolution_curves() uses.
_A_SMALL = {name: NZ[0] + NZ[1] for name, NZ in PRIMATConfig({'network': 'small'}).Nuclides.items()}
# Time grid (1 s → 10^6 s) and species style shared by both animations.
# Each entry: (species key, line color, linestyle, legend label).
t = np.logspace(0, 6, 500)
SPECIES = [
('n', 'black', 'solid', 'n'),
('p', 'red', 'solid', 'p'),
('H2', 'red', 'dashed', 'D'),
('H3', 'red', 'dotted', 'T'),
('He3', 'blue', 'dashed', r'$^3$He'),
('He4', 'blue', 'solid', r'$^4$He'),
('Li7', 'green', 'dashed', r'$^7$Li'),
('Be7', 'purple', 'solid', r'$^7$Be'),
]
# Fixed axis limits that encompass all frames in both animations.
XLIM = (1, 1e6)
YLIM = (1e-12, 2)
FPS = 5 # frames per second in the output GIF
os.makedirs('plots', exist_ok=True)
Helper: precompute abundance tracks¶
Running PRIMAT inside a FuncAnimation update callback would be slow.
We instead precompute the masked \((t, A_i Y_i)\) arrays for every frame
and cache them in a list of dicts.
def precompute_runs(param_values, param_name, base_params=None):
"""
Run the small-network BBN solve (via primat.backend.run_bbn) for each
value in *param_values*, evaluating all species on *t*.
Parameters
----------
param_values : array-like
Sequence of parameter values (one BBN solve per entry).
param_name : str
PRIMATConfig key to vary (e.g. ``'DeltaNeff'`` or ``'Omegabh2'``).
base_params : dict, optional
Fixed parameters shared by all runs (defaults to small network, silent).
Returns
-------
frames : list of dict
Each entry maps species name -> (t_masked, AY_masked) tuple.
"""
base = {'network': 'small', 'verbose': False,
'output_time_evolution': True, 'output_file': None}
if base_params:
base.update(base_params)
frames = []
n = len(param_values)
for i, val in enumerate(param_values):
print(f'\r {param_name} = {val:.4g} ({i+1}/{n})', end='', flush=True)
result = run_bbn({**base, param_name: val})
evolution = result['evolution']
frame = {}
for name, *_ in SPECIES:
AY = _A_SMALL[name] * Y_interpolator(evolution, name)(t)
mask = AY > 0
frame[name] = (t[mask], AY[mask])
frames.append(frame)
print() # newline after progress
return frames
Animation 1 — varying \(\Delta N_{\rm eff}\)¶
\(\Delta N_{\rm eff}\) parametrises extra relativistic energy density beyond the Standard Model value. Increasing it raises the Hubble rate, shifting freeze-out earlier and increasing \(Y_P\); decreasing it has the opposite effect.
delta_neff_values = np.linspace(-2.0, 2.0, 21) # 41 frames, step 0.2
print(f'Precomputing {len(delta_neff_values)} runs for ΔNeff sweep …')
frames_dneff = precompute_runs(delta_neff_values, 'DeltaNeff')
Precomputing 21 runs for ΔNeff sweep …
DeltaNeff = -2 (1/21)
DeltaNeff = -1.8 (2/21)
DeltaNeff = -1.6 (3/21)
DeltaNeff = -1.4 (4/21)
DeltaNeff = -1.2 (5/21)
DeltaNeff = -1 (6/21)
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT.
DeltaNeff = -0.8 (7/21)
DeltaNeff = -0.6 (8/21)
DeltaNeff = -0.4 (9/21)
DeltaNeff = -0.2 (10/21)
DeltaNeff = 0 (11/21)
MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT.
DeltaNeff = 0.2 (12/21)
DeltaNeff = 0.4 (13/21)
DeltaNeff = 0.6 (14/21)
DeltaNeff = 0.8 (15/21)
MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
DeltaNeff = 1 (16/21)
DeltaNeff = 1.2 (17/21)
DeltaNeff = 1.4 (18/21)
DeltaNeff = 1.6 (19/21)
DeltaNeff = 1.8 (20/21)
DeltaNeff = 2 (21/21)
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT. MT. LT. done.
[primat] HT.
MT. LT. done.
